Description

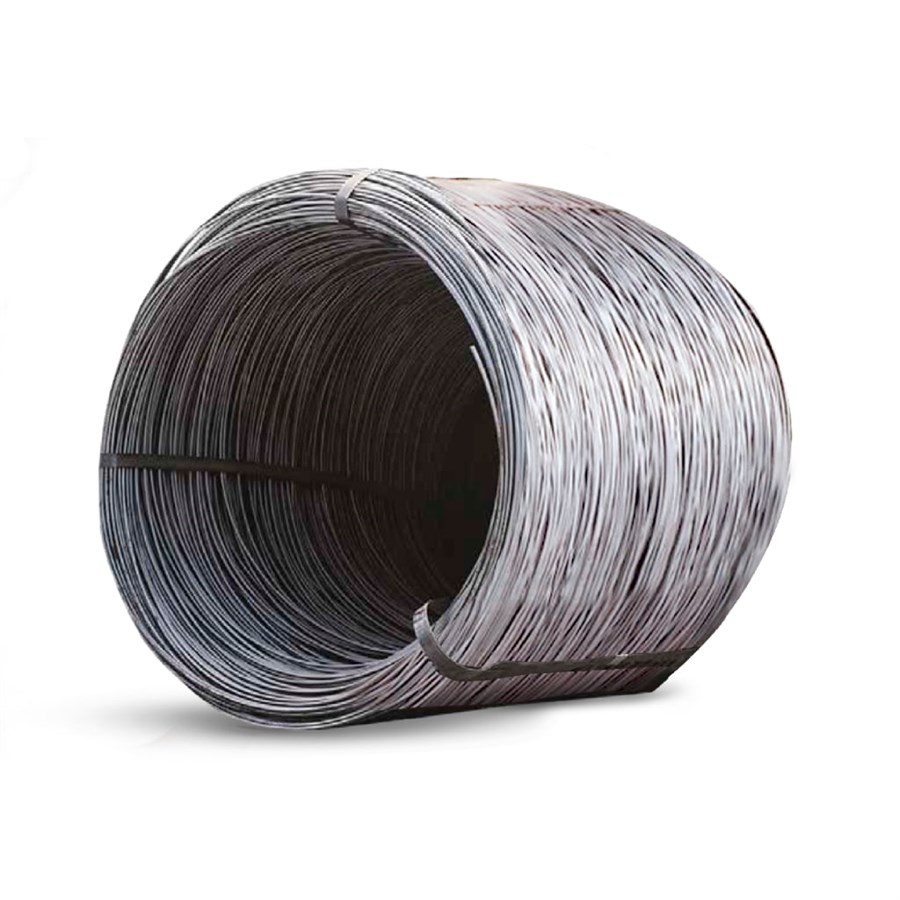

Wire Rod Product Description
Technical Specifications:
• Standard: EN 10025, Dimensions EN 10058, Tolerances EN 10058
• Sizes (Diameter):
• 5.5 mm (Weight: 0.187 Kg/m)
• 6.5 mm (Weight: 0.261 Kg/m)
• 8 mm (Weight: 0.395 Kg/m)
• Length: Supplied in coil form
Chemical Composition (by Grade):
1. SAE 1006:
• Carbon (C): max 0.08
• Manganese (Mn): 0.25-0.40
• Tensile Strength: 420 N/mm²
• Elongation: 22%
2. SAE 1008:
• Carbon (C): max 0.10
• Manganese (Mn): 0.30-0.50
• Silicon (Si): max 0.04
• Tensile Strength: 450 N/mm²
• Elongation: 21%
3. SAE 1010:
• Carbon (C): 0.13-0.18
• Manganese (Mn): 0.30-0.60
• Silicon (Si): max 0.04
4. SAE 1018:
• Carbon (C): 0.15-0.20
• Manganese (Mn): 0.60-0.90
• Tensile Strength: 520 N/mm²
• Elongation: 17%
5. SWRH67B (JIS):
• Carbon (C): 65-70
• Tensile Strength: 231 N/mm²
• Elongation: 56%
6. SWRH82B (JIS):
• Carbon (C): 80-85
• Manganese (Mn): 0.60-0.90
• Silicon (Si): 0.15-0.35
Applications:
Wire rods are ideal for construction, industrial manufacturing, and high-strength applications. They are suitable for reinforcement, welding processes, and general-purpose usage.
